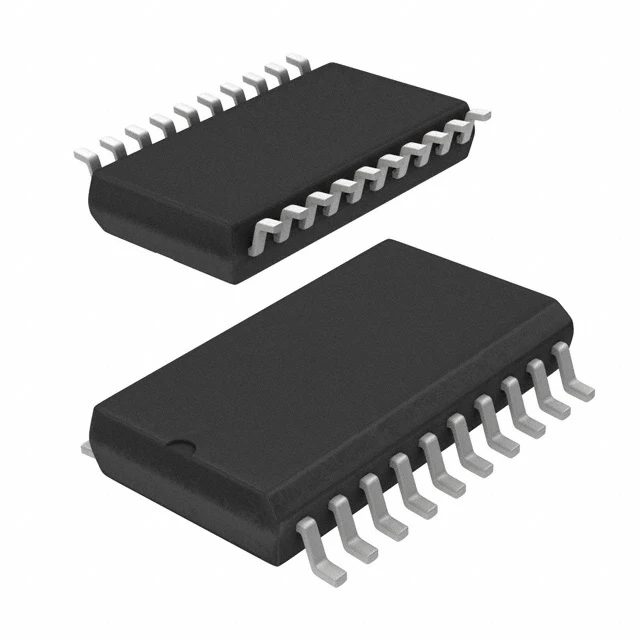

- Product Introduction
Product Attributes
|
TYPE |
DESCRIPTION |
|---|---|
|
Category |
Integrated Circuits (ICs) Embedded Microcontrollers |
|
Mfr |
Nuvoton Technology Corporation |
|
Series |
N79 |
|
Part Status |
Active |
|
Core Processor |
8051 |
|
Core Size |
8-Bit |
|
Speed |
24MHz |
|
Connectivity |
I2C, SPI, UART/USART |
|
Peripherals |
Brown-out Detect/Reset, KBI, LCD, POR, PWM, WDT |
|
Number of I/O |
25 |
|
Program Memory Size |
16KB (16K x 8) |
|
Program Memory Type |
FLASH |
|
RAM Size |
512 x 8 |
|
Voltage - Supply (Vcc/Vdd) |
2.4V ~ 5.5V |
|
Data Converters |
A/D 8x10b |
|
Oscillator Type |
Internal |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
20-SOP |
|
Package / Case |
20-SOIC (0.295", 7.50mm Width) |
|
Base Product Number |
N79E715 |
General description
The N79E715 8-bit Turbo 51 (4T Mode) microcontroller is embedded with 16 Kbytes Flash EPROMthat can be programmed through universal hardware writer, serial ICP (In Circuit Program)programmer, and software ISP function. The instruction sets of the N79E715 are fully compatible withthe standard 8052. The N79E715 contains 16 Kbytes [1] program memory (APROM) and 2 KbytesLoad Flash EPROM (LDROM) memory, 256 bytes direct and indirect RAM, 256 bytes XRAM; 25 I/Owith bit-addressable I/O ports; two 16-bit timers/counters; 8-channel multiplexed 10-bit A/D converter;4-channel 10-bit PWM; three serial ports including a SPI, I2C and an enhanced full duplex serial port;2-level BOD voltage detection/reset and power-on reset (POR). The N79E715 also supports internalRC oscillator 22.1184 MHz that is factory trimmed to ± 1% at room temperature and VDD = 5V.These peripherals are supported by 14 sources of four-level interrupt capability. To facilitateprogramming and verification, the Flash EPROM inside the N79E715 allows the program memory tobe programming and read electronically. The code is once confirmed. Thus the user can protect thecode for security.The N79E715 microcontroller, featuring wide operating voltage range, built-in rich analog and digitalperipherals and non-volatile Flash memory, is widely suitable for general control and homeappliances.
