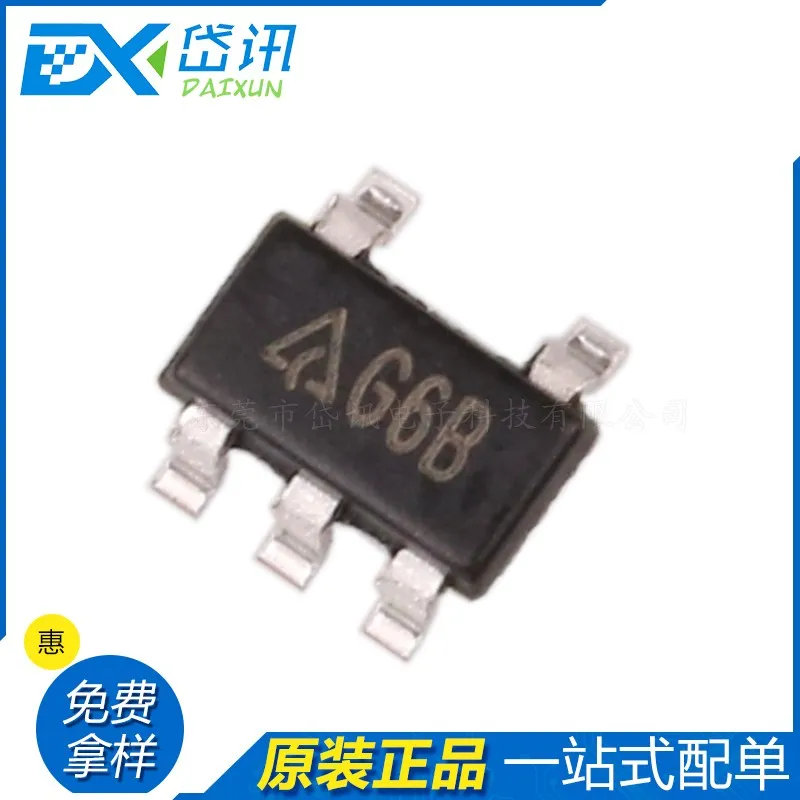

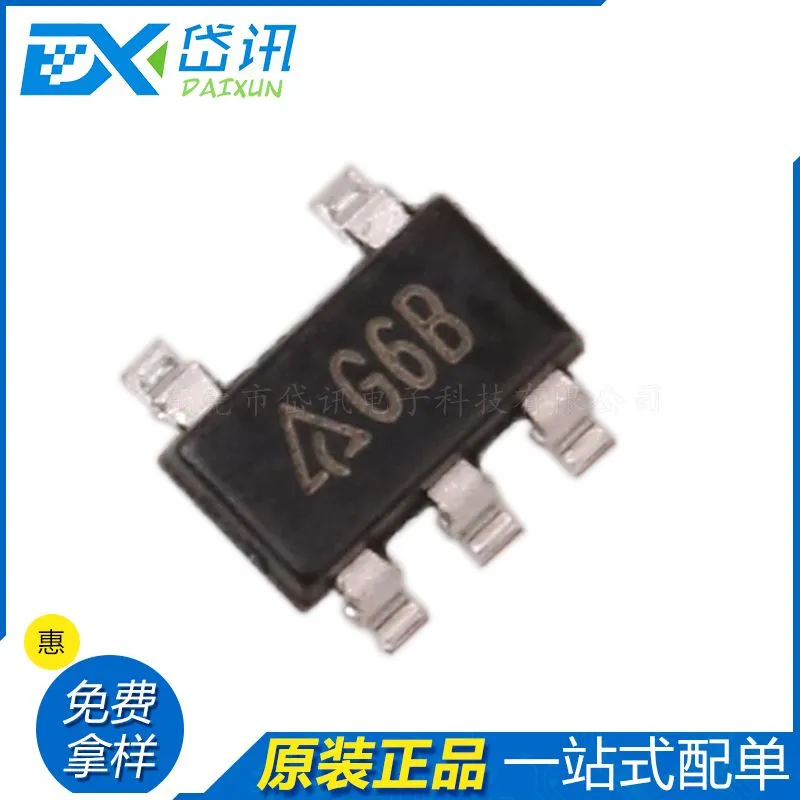

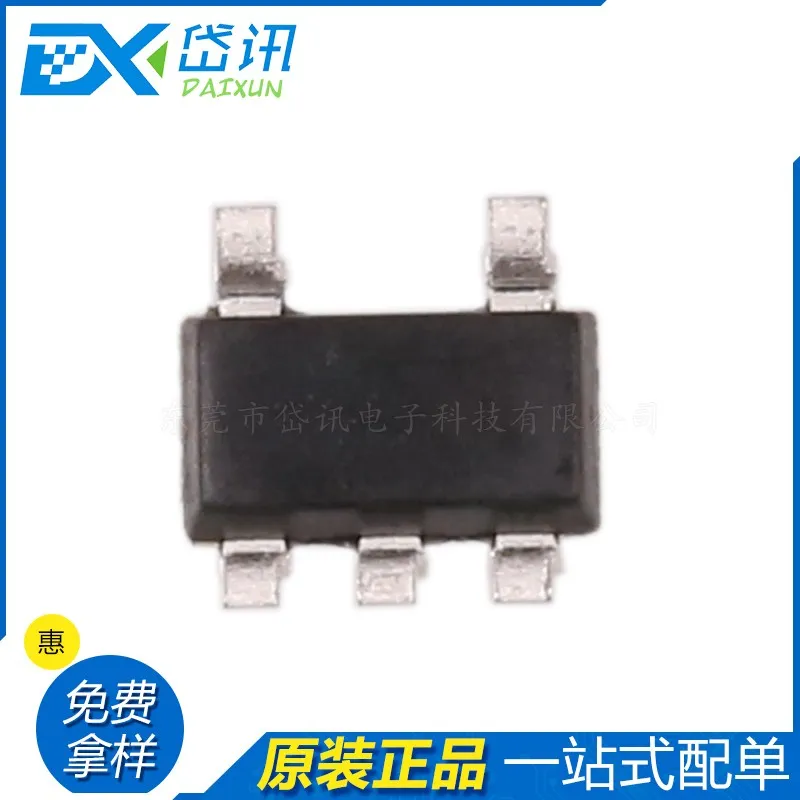

New Original IC AP3012KTR-G1
Boost Switching Regulator IC Positive Adjustable 1.25V 1 Output 500mA (Switch) SC-74A, SOT-753
- Product Introduction
Product Attributes
|
TYPE |
DESCRIPTION |
|---|---|
|
Category |
Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
|
Mfr |
Diodes Incorporated |
|
Series |
- |
|
Part Status |
Active |
|
Function |
Step-Up |
|
Output Configuration |
Positive |
|
Topology |
Boost |
|
Output Type |
Adjustable |
|
Number of Outputs |
1 |
|
Voltage - Input (Min) |
2.6V |
|
Voltage - Input (Max) |
16V |
|
Voltage - Output (Min/Fixed) |
1.25V |
|
Voltage - Output (Max) |
29V |
|
Current - Output |
500mA (Switch) |
|
Frequency - Switching |
1.5MHz |
|
Synchronous Rectifier |
No |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
SC-74A, SOT-753 |
|
Supplier Device Package |
SOT-23-5 |
|
Base Product Number |
AP3012 |
General description
The AP3012 is a high power, constant frequency, current modePWM, inductor based, step-up (boost) converter. The converteroperates at high frequency (1.5MHz) so that a small, low profileinductor can be used.The AP3012 has built-in overvoltage protection (OVP) to allow thedevice goes into shutdown mode when the output voltage exceedsthe OVP threshold of 29V.The AP3012 is available in standard SOT-23-5 package
