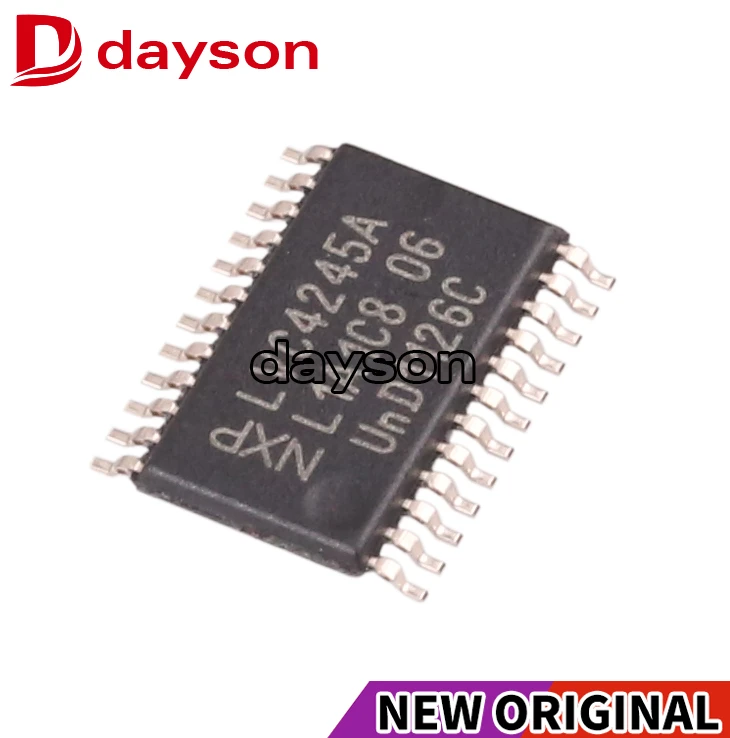

- Product Introduction
Product Attributes
|
TYPE |
DESCRIPTION |
|---|---|
|
Category |
Integrated Circuits (ICs) Logic Translators, Level Shifters |
|
Manufacturer |
Texas Instruments |
|
Series |
74LVC |
|
Part Status |
Active |
|
Translator Type |
Voltage Level |
|
Channel Type |
Bidirectional |
|
Number of Circuits |
1 |
|
Channels per Circuit |
8 |
|
Voltage - VCCA |
4.5 V ~ 5.5 V |
|
Voltage - VCCB |
2.7 V ~ 3.6 V |
|
Input Signal |
- |
|
Output Signal |
- |
|
Output Type |
Tri-State |
|
Data Rate |
- |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Features |
- |
|
Mounting Type |
Surface Mount |
|
Package / Case |
24-TSSOP (0.173", 4.40mm Width) |
|
Supplier Device Package |
24-TSSOP |
|
Base Product Number |
74LVC4245 |
General description
This 8-bit (octal) noninverting bus transceiver containstwo separate supply rails; B port has VCCB, which isset at 3.3 V, and A port has VCCA, which is set at 5V. This allows for translation from a 3.3-V to a 5-Venvironment, and vice versa.The SN74LVC4245A device is designed forasynchronous communication between data buses.The device transmits data from the A bus to theB bus or from the B bus to the A bus, dependingon the logic level at the direction-control (DIR) input.The output-enable (OE) input can be used to disablethe device so the buses are effectively isolated. Thecontrol circuitry (DIR, OE) is powered by VCCA.
