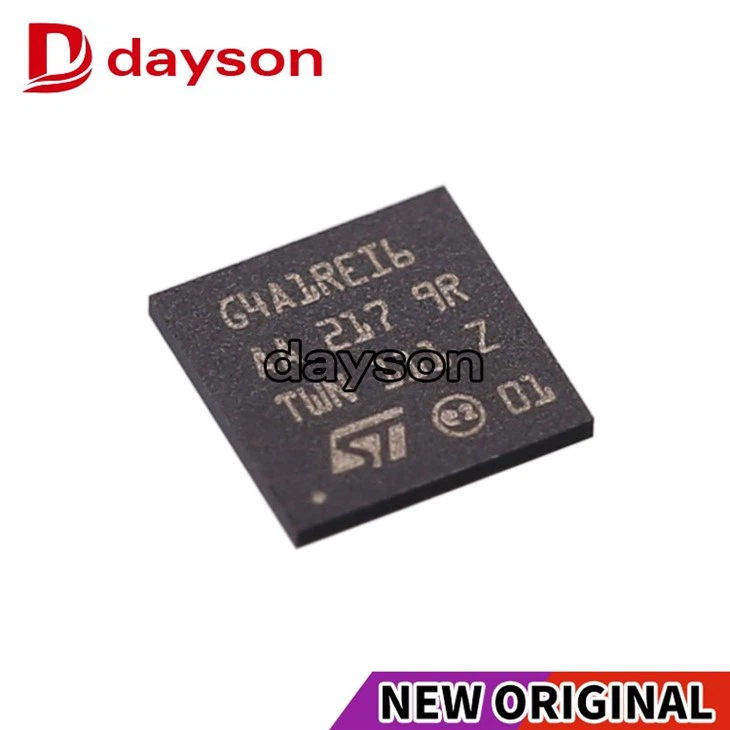

Integrated Circuit For STM32G4A1REI6
Manufacturer Product Number；STM32G4A1REI6
Description；IC MCU 32BIT 512KB FLASH 64UFBGA
Detailed Description；ARM® Cortex®-M4F STM32G4 Microcontroller IC 32-Bit Single-Core 170MHz 512KB (512K x 8) FLASH 64-UFBGA (5x5)
- Product Introduction
Product Attributes
|
TYPE |
DESCRIPTION |
|---|---|
|
Category |
Integrated Circuits (ICs) Embedded Microcontrollers |
|
Mfr |
STMicroelectronics |
|
Series |
STM32G4 |
|
Part Status |
Active |
|
Core Processor |
ARM® Cortex®-M4F |
|
Core Size |
32-Bit Single-Core |
|
Speed |
170MHz |
|
Connectivity |
CANbus, I2C, IrDA, IRTIM, LINbus, SAI, SPI, UART/USART, USB |
|
Peripherals |
Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
|
Number of I/O |
52 |
|
Program Memory Size |
512KB (512K x 8) |
|
Program Memory Type |
FLASH |
|
EEPROM Size |
- |
|
RAM Size |
112K x 8 |
|
Voltage - Supply (Vcc/Vdd) |
1.71V ~ 3.6V |
|
Data Converters |
A/D 24x12b; D/A 4x12b |
|
Oscillator Type |
Internal |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
64-UFBGA (5x5) |
|
Package / Case |
64-UFBGA |
|
Base Product Number |
STM32G4A1 |
Features
• Includes ST state-of-the-art patentedtechnology
• Core: Arm® 32-bit Cortex®-M4 CPU with FPU,Adaptive real-time accelerator (ARTAccelerator) allowing 0-wait-state executionfrom flash memory, frequency up to 170 MHzwith 213 DMIPS, MPU, DSP instructions
• Operating conditions:– VDD, VDDA voltage range:1.71 V to 3.6 V
• Mathematical hardware accelerators– CORDIC for trigonometric functionsacceleration– FMAC: filter mathematical accelerator
• Memories– 512 Kbytes of flash memory with ECCsupport, proprietary code readoutprotection (PCROP), securable memoryarea, 1 Kbyte OTP– 96 Kbytes of SRAM, with hardware paritycheck implemented on the first 32 Kbytes– Routine booster: 16 Kbytes of SRAM oninstruction and data bus, with hardwareparity check (CCM SRAM)– Quad-SPI memory interface
• Reset and supply management– Power-on/power-down reset(POR/PDR/BOR)– Programmable voltage detector (PVD)– Low-power modes: sleep, stop, standbyand shutdown– VBAT supply for RTC and backup registers
• Clock management– 4 to 48 MHz crystal oscillator– 32 kHz oscillator with calibration– Internal 16 MHz RC with PLL option (± 1%)– Internal 32 kHz RC oscillator (± 5%)
• Up to 86 fast I/Os– All mappable on external interrupt vectors– Several I/Os with 5 V tolerant capability
• Interconnect matrix
• 16-channel DMA controller
• 3 x ADCs 0.25 µs (up to 36 channels).Resolution up to 16-bit with hardwareoversampling, 0 to 3.6 V conversion range
• 4 x 12-bit DAC channels– 2 x buffered external channels 1 MSPS– 2 x unbuffered internal channels 15 MSPS
• 4 x ultra-fast rail-to-rail analog comparators
• 4 x operational amplifiers that can be used inPGA mode, all terminals accessible
• Internal voltage reference buffer (VREFBUF)supporting three output voltages (2.048 V,2.5 V, 2.9 V)
• 15 timers:– 1 x 32-bit timer and 2 x 16-bit timers with upto four IC/OC/PWM or pulse counter andquadrature (incremental) encoder input– 3 x 16-bit 8-channel advanced motorcontrol timers, with up to 8 x PWMchannels, dead time generation andemergency stop
Communication interfaces
– 2 x FDCAN controller supporting flexibledata rate
– 3 x I2C Fast mode plus (1 Mbit/s) with20 mA current sink, SMBus/PMBus,wakeup from stop
– 5 x USART/UARTs (ISO 7816 interface,LIN, IrDA, modem control)
– 1 x LPUART
– 3 x SPIs, 4 to 16 programmable bit frames,2 x with multiplexed half duplex I2Sinterface
– 1 x SAI (serial audio interface)
– USB 2.0 full-speed interface with LPM andBCD support
– IRTIM (infrared interface)
– USB Type-C™ /USB power deliverycontroller (UCPD)
